Filter Separator QOC Revision

Client:	BOTAŞ
Location:	Türkiye
Date:	2024
Scope of Work:	Design & Engineering, Material Selection, Procurement, Fabrication, Assembly, Testing & Inspection, Certification, Operation & Maintenance Instructions, Shipment, Supervision for Commissioning & Start-up

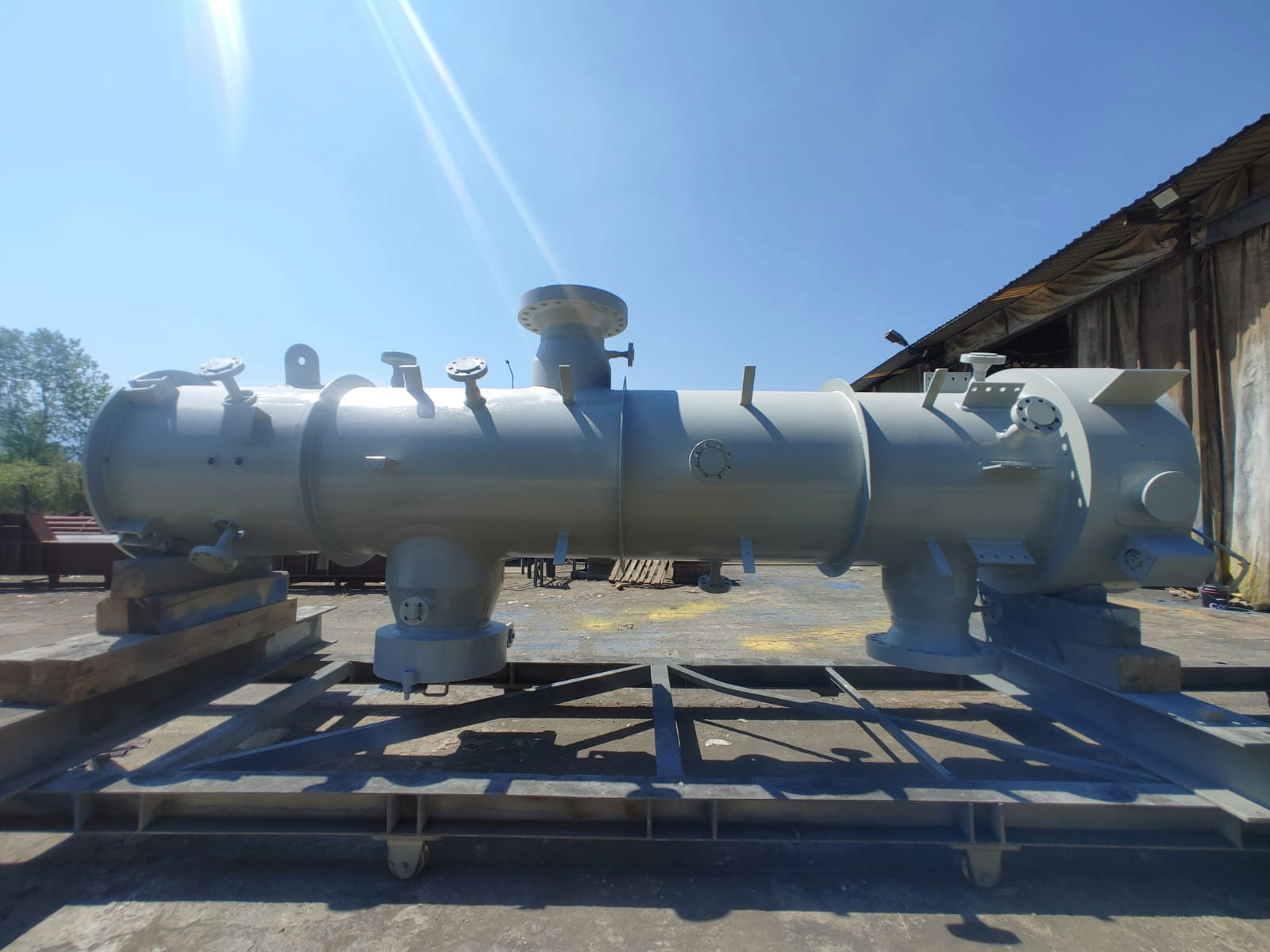

Equipment Type:	Filter Separator

Project Details

Service: Natural Gas
Design Code: ASME SEC. 8 Div.1 U stamped
Operation Temperature: -20 / 80 °C
Design Temperature: -25 / 110 °C
Shell Material: SA516 GR70
Pipe Material: SA333 Gr6
Fitting Materials: SA420 WPL6
Flange Materials: SA350 LF2
Natural Gas Flow Rate: 250,000 Nm³/h
Vessel Dimensions: 1100 mm × 7500 mm × 65 mm
